random.h

by

random.h is a header only random number generation library for games, image processing and procedural content generation.

A few years back I wrote some handy floating point random number generation routines for a raytracer.  Time and again, I have needed these routines for other programs I have been working on.  It seems like a good idea to wrap them up in a small header and release them in the public domain for others to use too.

Each RNG function takes an 64bit integer as a seed value and permutes it in place.  The resulting bits are used for the generation of the result.  I like this design as it keeps the RNG functions stateless and thread safe.  You just have to keep track of the uint64_t you have been using as your RNG stream.

Included are various 1, 2 and 3 dimentional random number generators with a range of different distributions.

Triangular random noise is very usefull when dithering audio and images during the process of bitdepth conversion.  Typicaly, triangular noise is added to the signal immediately before type casting (at the same magnitude as the LSB of the destination bit depth).

The 2d and 3d vector RNG functions generate statisticaly unbiased vectors inside and on the unit circle or sphere (Generating vectors by randomizing the components and normalizing would bias the vector to the corners of unit cube).  I have used these functions successfully in the past for generating ambient occlusion maps.

I wrote a little program to generate some images to display the output distribution of each function.  A 3d point is generated by filling its component from the RNG function under test, and the resulting point is projected in space, as well as projected on each component axis (the red, blue and green planes).  Hopefully the images help a little to convey the distribution of each function.

Again, you can find the library here:
random.h

randfu() - unsigned random
range [0,1]

randfu_2

randfs() - signed random
range [-1,+1]

randfs_2

trandfs() - triangular random
range[-1,+1], tends to 0

trandfs_2

grandfs() - gaussian random
range ~[-1,+1], tends to 0

grandfs_2

vrand3d() - 3d vector random
magnitude range: [0, 1]

vrand3d_2

nvrand3d() - normalized 3d vector random
magnitude = 1

nvrand3d_2

vrand2d() - 2d vector random
magnitude range: [0,1]

vrand2d_2

nvrand2d() - normalized 2d vector random
magnitude = 1

nvrand2d_2

Mastering The Dungeon

by

Today I pointed my browser towards The TIGSource website and saw a fresh post directing readers to a kickstarter for TinyKeep.  While I am not exactly interested in the game itself, one thing on the site caught my eye.  The team have developed an interactive demo for their random dungeon creation algorithm, and I really like it.  It can generate nice looking dungeons, and the concepts it uses seems reasonably understandable.  I wasn’t satisfied with just observing the demo to try and infer how it operates so I decided to take a peek under the hood.

I downloaded the flash object and pointed a shockwave flash decompiler at it, to find ~6000 lines of code.  I guess that is because the decompiler doesn’t discriminate between linked libraries and regular program code.

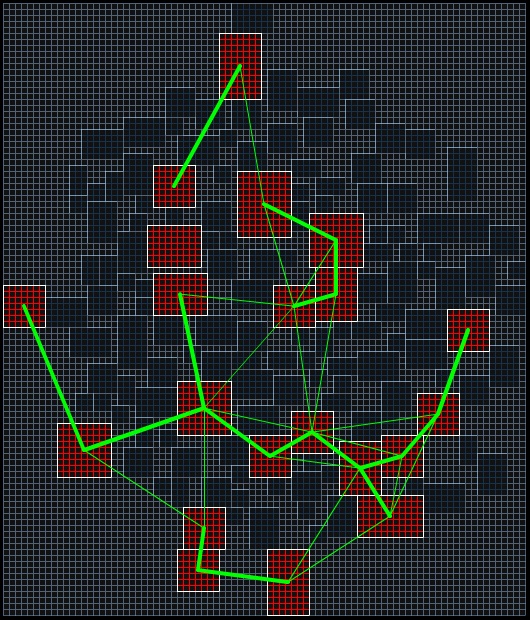

Above is a picture taken nearing the end of the generation process.  At this point it seems links are added until a minimum spanning tree is available or something, being highlighted by the thicker green lines.

The source is not as immediately helpful as I wanted it to be, but it turned up a few interesting hints.  There is a mention of minimum spanning trees, which I remember casually skipping over while digesting my algorithms book.  I have however since read that chapter again this morning, and now I have a pretty good idea of how these concepts can be used in this context.

So my task in building the Tengu Engine will be stalled for just a moment while I play with my own implementation and variation of this algorithm.  In fact, procedural level creation is something that I haven’t read about actively so perhaps this algorithm is already well known, but being a feet first kind of person, I rather fancy just coding up my own before researching this stuff.

Space Invader Generator

by


I read about a very interesting technique some time ago. A method was proposed for generating a completely random set of low resolution space invader like creatures. The idea was extremely simple and elegant. The key to the technique is its use of symmetry, since the human mind likes to find form and meaning in symmetric things.

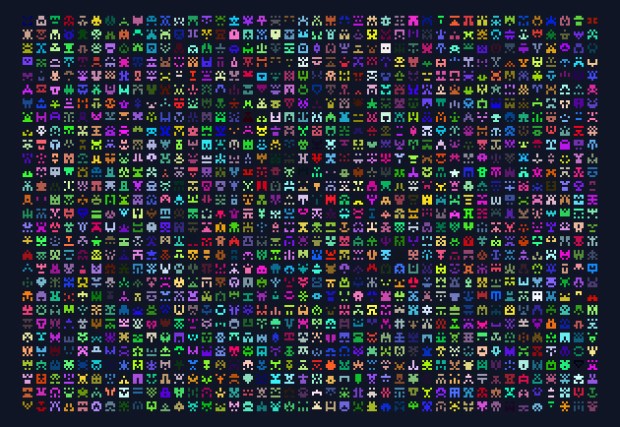

For my implementation I chose a size of 5×5 pixels for my invaders and a line of symmetry down the middle. More specifically, the first three pixels of each row are random, and the last two are mirrors of the first two. For this technique I implemented my own pseudo random number generator using a linear feedback shift register technique. The color of each of the invaders shown corresponds to the seed of the random number generator when it was formed. This seed could be used to re-generate any space invader, but this implementation does not support this currently since the seed is 32bits wide and a colour is clearly 3x8bits or 24bits.

The code can be found here:

http://pastebin.com/223eTMka

It would be great to add this to a game like geometry wars and have all of your enemies procedurally generated, from their visuals down to their abilities. The scope for using this in a retro computer game seem really endless.
